Requesting
Electronic Diagnostic Request Profiles
The Magentus Requesting Service FHIR capability is specified in Requesting Capability Statement.
Requesting Transaction Model

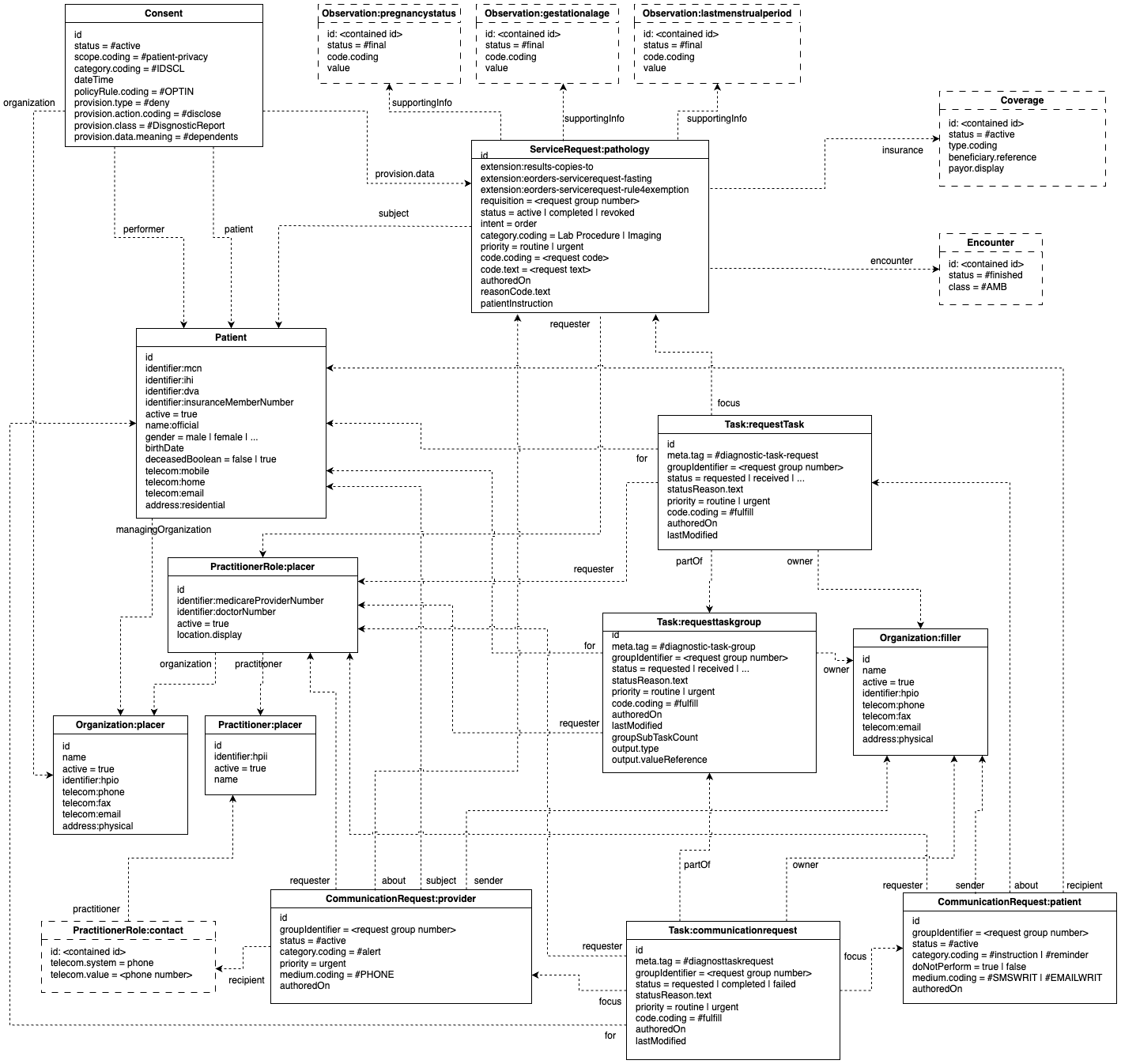

The FHIR Resources generated by the Magentus Requesting Service are shown in the diagram below.
Claim Order Operation
The claim operation is used create a new fulfilment 'Task' for an alternate filler. It cancels the original fulfilment 'Task', if it exists, but leaves the 'ServiceRequest' unchanged. The original filler can determine that the order is being alternatively filled but not who is the alternative filler and similarly the alternate filler cannot determine who was the original filler.
Diagnostic Service Claim Operation
Requesting Profiles
The FHIR Resources generated by the Magentus Requesting Service are listed below. It should be noted that Diagnostic Service Request should be regarded as a legacy profile and instead replaced by explicit Pathology Request and Radiology Request.
Additional resources are contained within the Requesting resources above, the FHIR profiles for these resources are listed below.
